The prefabricated ceramic walls are constructed with Ploegsteert's rapid construction bricks and a two-component PU adhesive. The walls are suitable for load-bearing and non-load-bearing masonry.

These floor-to-ceiling walls have unparalleled dimensional stability thanks to a revolutionary production process. In addition, the precast walls have an ATG seal of approval.



  • A fast construction site
  • A cost-effective construction site
  • A safe construction site
  • A clean construction site



  • Easy assembly: 3 people per team
  • High efficiency: 200 to 250 m² per shift per day
  • Streamlined site coördination
  • Integrated EPB solution with the Ploegsteert Lambdabloc
  • Integration of non-load bearing ceramic lintels
  • Simple lifting system
  • Available in different compressive strengths
  • Storey-high walls
  • Punctual deliveries to the building site
  • Cut-outs for various techniques
  • Installation can be implemented by a Prefaxis approved contractor.
  • The contractor's installation crew is trained by the project consultants.
  • Customization
  • Guidance from design to project completion.

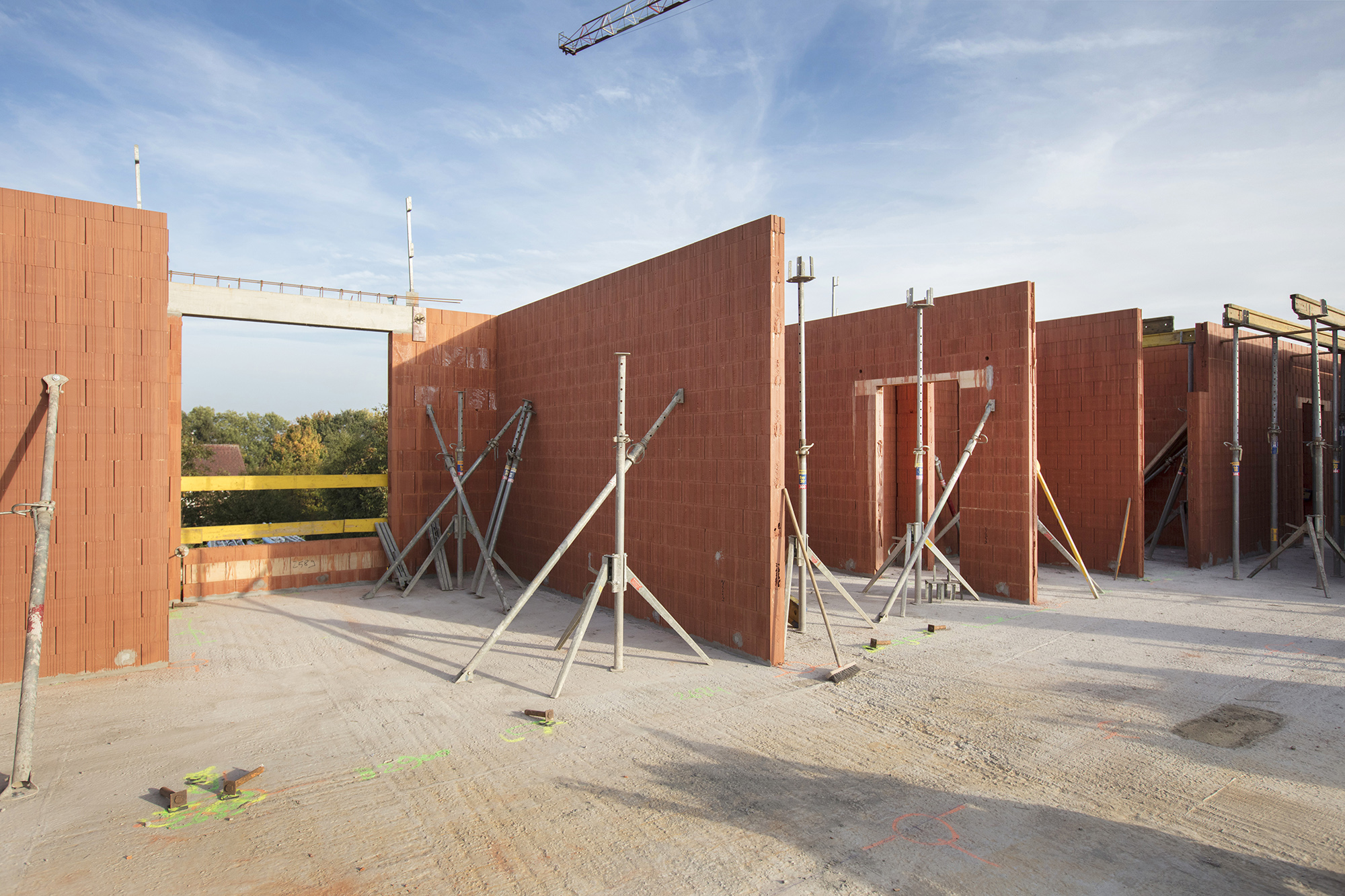

V02 Baksteen WZC BE Zwevezele Pastorijstraat 56 19


  • Used fast building bricks
    Choice of stone thickness: 100 mm, 120 mm, 140 mm and 190 mm.
    Choice of different compressive strengths: TBV ≥ 18 N/mm², TBVHR ≥ 25 N/mm², HBV ≥ 35 N/mm².
  • Size tolerance
    Average of 3 mm, both in horizontal and vertical directions!
  • Characteristic compressive strength of the wall
    Test results on test walls (according to NBN EN1052-1) show a characteristic compressive strength of 8.6 to 12.7 N/mm².
  • Fire resistance
    Test results provide a fire resistance of 150 minutes (REI 120) (plastered on one side).
  • Insulation
    Good thermal and acoustic insulation guarantee optimal living comfort.
  • Waterproofing
    The wall has a certified water barrier that comes between the first and second layer of bricks. Test results from the WTCB state that "rising damp is completely stopped".
  • Mass
    Mass density: 950 to 1210 kg/m³.

In the download corner you will find all technical documents.

Be inspired by our realizations.

V07 Baksteen Svsbouw BE Erpe Mere 19
V02 Baksteen WZC BE Zwevezele Pastorijstraat 56 13


Prefaxis offers precast concrete beams when ordering ceramic walls, as an additional service to its customers.

Possible widths: 12, 14 or 19 cm

  • Precast concrete beams are drawn out along with the walls.
  • One technical point of contact within Prefaxis for walls and beams.
  • The concrete beams are included with the walls.
  • No on-site formwork, higher efficiency.
  • Efficient work, less labor intensive.
Prefab Betonnen Balken
IMG 6724
